High temperature resistance for power cable applications

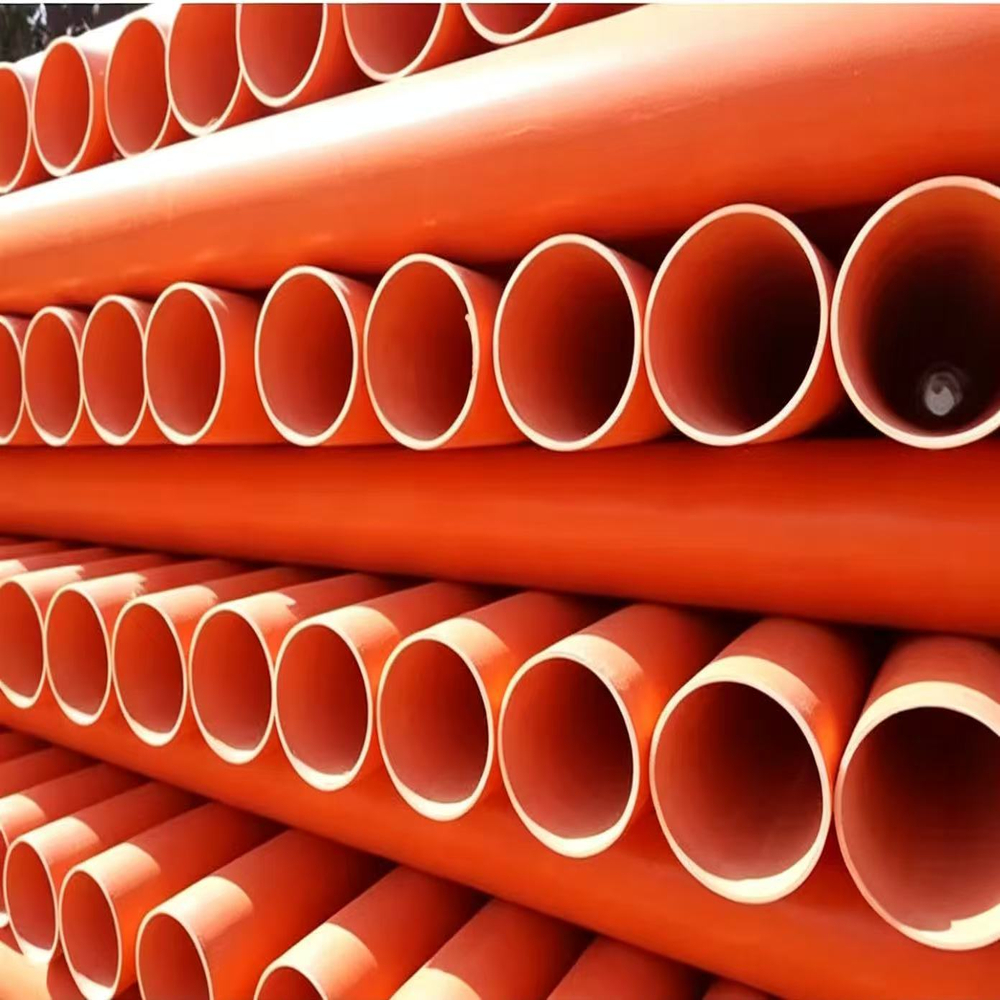

CPVC Power Pipe can withstand continuous operating temperatures up to 93°C, significantly higher than standard PVC pipes (60°C maximum). This elevated temperature resistance makes it suitable for power cable conduits where heat is generated during electrical transmission, ensuring the pipe maintains structural integrity and protection capability under demanding operating conditions.
Excellent flame retardancy and self-extinguishing properties
CPVC material has inherent flame retardant characteristics with a high Limiting Oxygen Index (LOI), meaning it will not support combustion and self-extinguishes when the ignition source is removed. This property is critical for power cable protection applications where fire safety is paramount, preventing flame spread along cable routes in the event of electrical faults or external fire exposure.
High compressive strength for underground burial
CPVC Power Pipe offers exceptional compressive strength and rigidity, enabling it to withstand significant external loads from soil pressure and surface traffic in buried installations. Its structural strength ensures long-term protection for power cables without deformation or collapse, even in deep burial or heavy traffic areas such as road crossings.
Superior electrical insulation properties
CPVC material provides excellent dielectric properties and electrical insulation, offering an additional safety barrier for power cables. The non-conductive nature of CPVC helps prevent electrical leakage and protects against ground faults, contributing to the overall safety of underground power distribution systems.
Chemical resistance and long service life
CPVC Power Pipe is highly resistant to corrosion from soil chemicals, groundwater, and acids commonly found in underground environments. Unlike metal conduits, it will not rust or degrade over time, providing a design service life of 50 years or more with minimal maintenance requirements in properly installed systems.
Application Scope
- High-voltage power cable protection systems
- Underground direct burial cable conduits
- Through-wall cable penetrations and entries
- Municipal power pipeline networks
- Industrial facility power distribution
- Substation and transformer station cable routing
FAQ
What is the difference between CPVC and standard PVC power pipes?
CPVC (Chlorinated Polyvinyl Chloride) undergoes an additional chlorination process that increases the chlorine content from approximately 56% to 67%, resulting in significantly improved heat resistance. While standard PVC pipes are limited to 60°C maximum operating temperature, CPVC can withstand temperatures up to 93°C. CPVC also offers superior flame retardancy, better impact resistance at elevated temperatures, and higher tensile strength. These properties make CPVC the preferred choice for high-voltage power cable protection where heat generation and fire safety are critical considerations.
What sizes and stiffness classes are available for CPVC Power Pipe?
CPVC Power Pipe is available in diameters ranging from 32mm to 200mm for standard power cable applications, with larger sizes available for special projects. Common stiffness classes include SN4, SN8, and SN16 (kN/m²), with SN8 being the most widely specified for standard underground power cable installations. SN16 is recommended for deep burial or areas subject to heavy traffic loads. Pipe lengths are typically 6 meters with solvent cement socket joints for installation flexibility.
How is CPVC Power Pipe installed?
CPVC Power Pipe is installed using solvent cement welding for permanent, watertight joints. The pipe ends and fittings are cleaned, primed, and cemented according to manufacturer procedures to create fused connections. Installation methods include open trench excavation for direct burial, or placement in pre-formed conduits for through-wall applications. Proper bedding and backfill materials should be used to ensure even load distribution and prevent point loading on the pipe. Installation should follow relevant electrical and building codes for power cable protection systems.
